Case 580K Loader Backhoe Service Manual PDF
Pages: 1447
Format: PDF
File Size: 581 MB
Part Number:8-12790
Language: English
Delivery Instant download after purchase
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.
This complete service and repair manual covers the Case 580K Phase 3 loader backhoe, the machine that set the pattern for the whole 580 line. It brings together the specifications, pressure checks, torque values and step-by-step procedures that workshop technicians use to keep these loaders digging, loading and earning year after year.
The engine section covers removal and installation, radiator work, stall tests, cylinder head and valve train, cylinder block, lubrication and cooling systems, plus turbocharger teardown and failure analysis. Fuel system coverage includes the injection pump and drive gear, injectors and filtration. Separate chapters handle the power shuttle, transfer gearbox, transaxle, differential lock, wet brakes, wheels and tyres.
Steering is documented for both Eaton and Danfoss control valves and for two- and four-wheel drive front axles, while the hydraulics chapter walks through the pump, loader control valve, cylinders, backhoe control valve, swing sequence valve and three-point hitch control valve. Mounted equipment, air conditioning, ROPS cab and canopy, and suspension seat are covered too.
Torque specifications, fluid and lubricant charts and troubleshooting guides run throughout the book, and both the electrical and hydraulic schematics are included as full foldouts. Bookmarked, searchable and printable, the file lets you find the right procedure quickly and print just the pages you need at the machine.

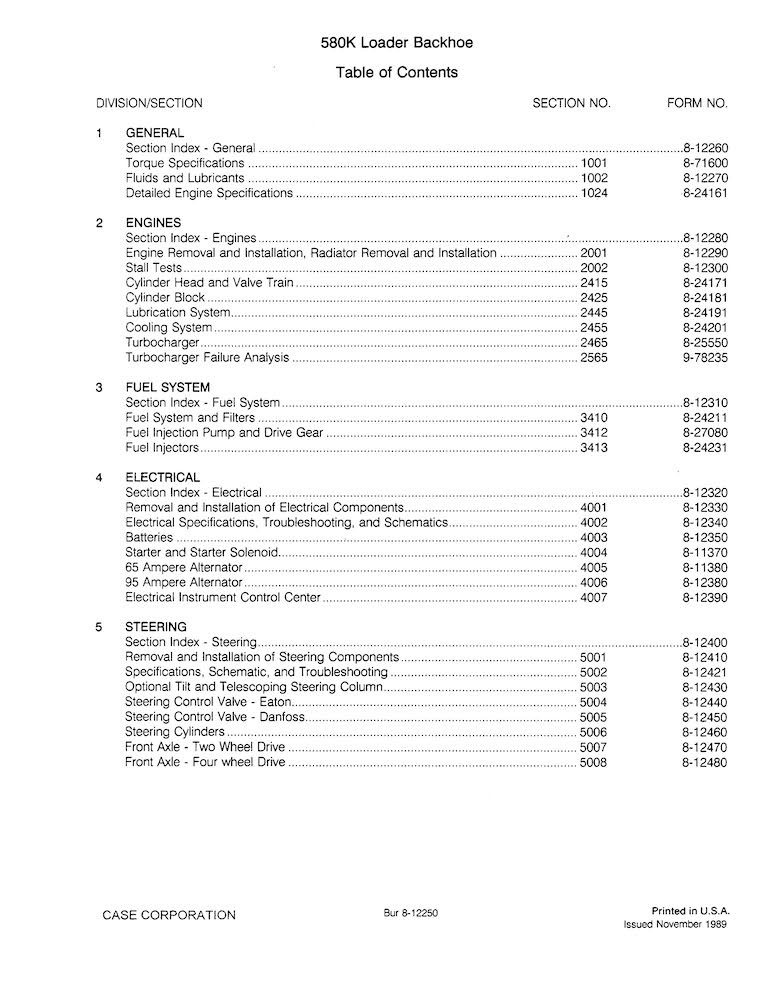

Contents:
GENERAL
Torque specifications
Fluids and lubricants
Detailed engine specifications
ENGINES
FUEL SYSTEM
ELECTRICAL
STEERING
POWER TRAIN
BRAKES
HYDRAULICS
MOUNTED EQUIPMENT
ELECTRICAL SCHEMATIC
HYDRAULIC SCHEMATIC
