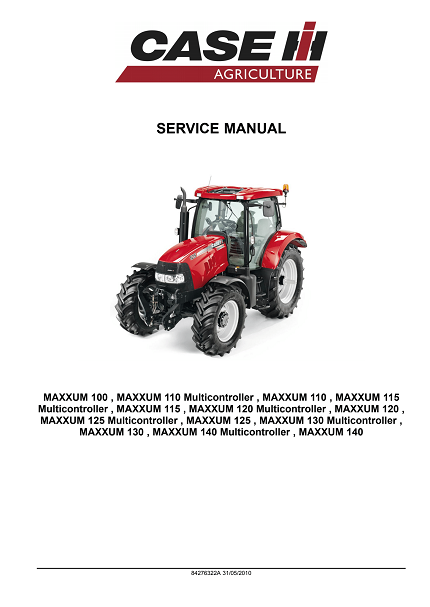

Case IH MAXXUM 100, MAXXUM 110 Multicontroller, MAXXUM 110, MAXXUM 115 Multicontroller, MAXXUM 115, MAXXUM 120 Multicontroller, MAXXUM 120, MAXXUM 125 Multicontroller, MAXXUM 125, MAXXUM 130 Multicontroller, MAXXUM 130, MAXXUM 140 Multicontroller, MAXXUM 140 Tractor Service Manual

Type:Tractor
Pages: 3970
Format: PDF
File Size: 118 MB
Part Number: 84276322A
Language: English
Compatibility: PC, Mac, tablet, smartphone

This manual is divided into Sections. Each Section is then divided into Chapters. Contents pages are included at the beginning of the manual, then inside every Section and inside every Chapter. An alphabetical Index is included at the end of a Chapter. Page number references are included for every piece of technical information listed in the Chapter Contents or Chapter Index.

Contents:

INTRODUCTION
HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONIC SYSTEMS A
PRIMARY HYDRAULIC POWER SYSTEM
PRIMARY HYDRAULIC POWER SYSTEM Closed center mechanical remote valve
PRIMARY HYDRAULIC POWER SYSTEM Electro-hydraulic remote valve
PRIMARY HYDRAULIC POWER SYSTEM Open center mechanical remote valve
SECONDARY HYDRAULIC POWER SYSTEM
HYDRAULIC COMMAND SYSTEM
ELECTRICAL POWER SYSTEM
ELECTRICAL POWER SYSTEM
ELECTRONIC SYSTEM
FAULT CODES
ENGINE AND PTO IN
ENGINE
FUEL AND INJECTION SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
ENGINE COOLANT SYSTEM
STARTING SYSTEM
TRANSMISSION, DRIVE AND PTO OUT
POWER COUPLING Clutch
TRANSMISSION Mechanical
TRANSMISSION Power Shuttle
TRANSMISSION Semi-Powershift
ADDITIONAL REDUCERS Creeper
ADDITIONAL REDUCERS Overdrive
REAR PTO Hydraulic
FRONT PTO Hydraulic
AXLES, BRAKES AND STEERING
FRONT AXLE
REAR AXLE
2WD-4WD SYSTEM Hydraulic
STEERING Hydraulic
SERVICE BRAKE Hydraulic
PARKING BRAKE Mechanical
BRAKE CONNECTION Hydraulic
SUSPENSION Hydraulic
WHEELS AND TRACKS Wheels
FRAME AND CAB
FRAME Primary frame
SHIELD
USER CONTROLS AND SEAT
USER PLATFORM
ENVIRONMENT CONTROL Heating, ventilation and air-conditioning
HITCH AND WORKING TOOL
HITCH Front hitch
HITCH Rear hitch
HITCH Electronic draft control
