Case L Series (580L, 580 Super L, 590 Super L) Loader Backhoe Family Service Manual

Case L Series (580L, 580 Super L, 590 Super L) Loader Backhoe Family Service Manual PDF
Pages: 1468
Format: PDF
File Size: 470 MB
Part Number:7-48694
Language: English
Delivery Instant download after purchase
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

This complete service and repair manual covers the Case L Series loader backhoe family — the 580L, 580 Super L, 590L and 590 Super L — built around the 4-390 (Cummins 4T-390) diesel engine. It brings together the technical data, specifications, pressure checks and step-by-step procedures that workshop technicians use to keep these machines earning.

Torque charts, fluid and lubricant tables and troubleshooting guides appear throughout, and dedicated hydraulic and electrical schematic foldouts are included for both the 580L and the 580 Super L / 590 Super L. Searchable and printable, the file lets you find the exact procedure fast and print just the pages you need at the machine.

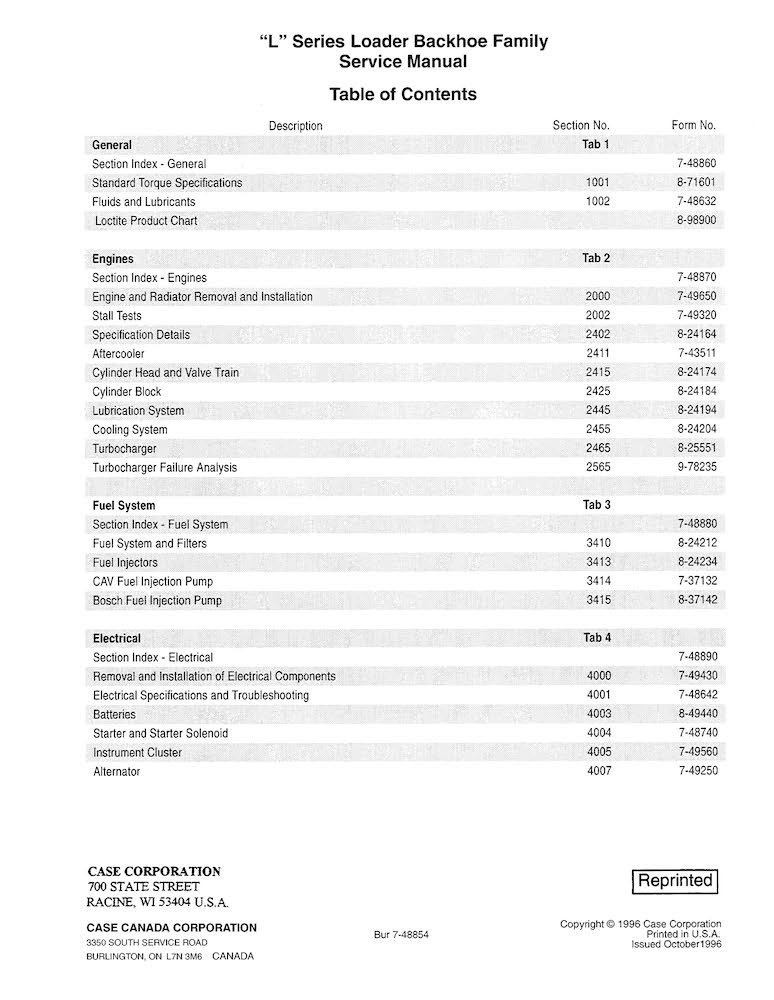

Contents:

GENERAL
Standard torque specifications
Fluids and lubricants
Loctite product chart
ENGINES
Engine and radiator removal and installation
Stall tests
Aftercooler
Cylinder head and valve train
Cylinder block
Lubrication system
Cooling system
Turbocharger and turbocharger failure analysis
FUEL SYSTEM
Fuel system and filters
Fuel injectors
CAV fuel injection pump
Bosch fuel injection pump
ELECTRICAL
STEERING
POWER TRAIN
BRAKES
HYDRAULICS
MOUNTED EQUIPMENT
HYDRAULIC SCHEMATIC FOLDOUT
ELECTRICAL SCHEMATIC FOLDOUT
