Contents:
- Introduction
- Engine and System Identification
- Mechanical Troubleshooting and Checks
- Cylinder Head
- Cylinder Block and Liner
- Pistons and Rods
- Crankshaft
- Camshaft
- Flywheel
- Gears and Housing
- Pulleys and Drive
- Cooling System
- Oiling System
- Exhaust, Turbocharger, Aftercooler
- Air Compressor
- Fuel System – Removal and Installation, Checks
- Battery, Starter and Alternator
- Engine Testing (In Chassis)
- Engine Remove/Install
- Engine Specifications
- Torque Specs and Clearance Data

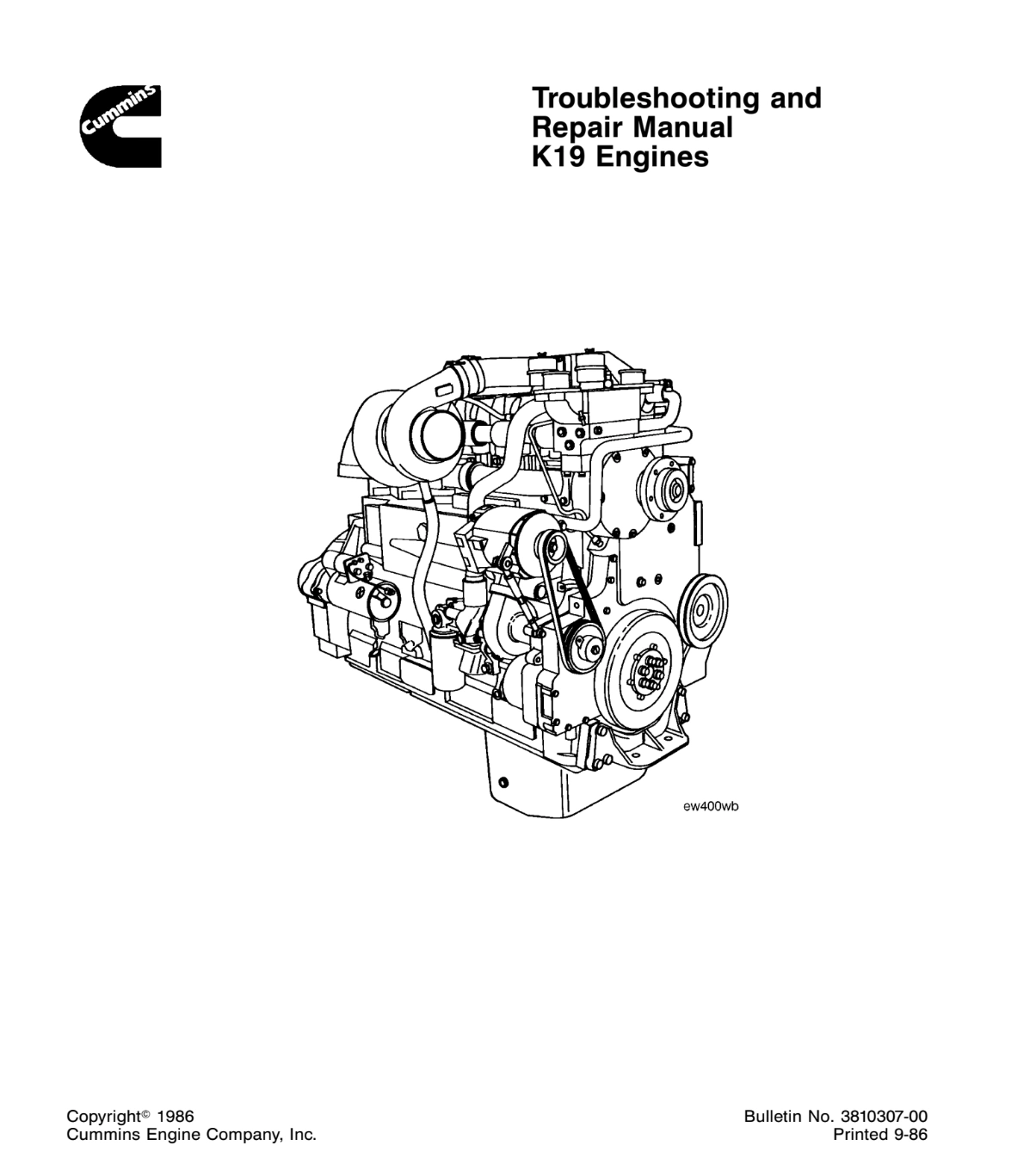

This manual provides instructions for troubleshooting and repairing the K19 Engine in the chassis. Component and assembly rebuild procedure are provided in the Cummins KT 1150 Shop Manual.
The manual is organized to guide a service technician through the logical steps of identifying and correcting problems related to the engine.
This manual does not cover vehicle or equipment problems. Consult the vehicle or equipment manufacturer for repair procedures.
A series of specific service manuals (Shop, Specifications, Alternative Repair, and so on.) are available and can be ordered by filling out and mailing the Literature Order Form located in the Service Literature Section 14.
The repair procedures used in this manual are recommended by Cummins Engine Co., Inc. Some service procedures require the use of special service tools. Use the correct tools as described.
Reporting of errors, omissions, and recommendations for improving this publication by the user is encouraged.Please use the postage paid, self addressed Literature Survey Form in the back of this manual for communicating your comments.
The specifications and rebuild information in this manual is based on the information in effect at the time of printing.Cummins Engine Company, Inc. reserves the right to make any changes at any time without obligation. If differences are found between your engine and the information in this manual, contact a Cummins Authorized Repair Location, A Cummins Division Office, or the factory.
