Type: Telescopic Handler
Pages: 701
Format: PDF
File Size: 46.8 MB
Part Number: 9803/3600U
Language: English
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

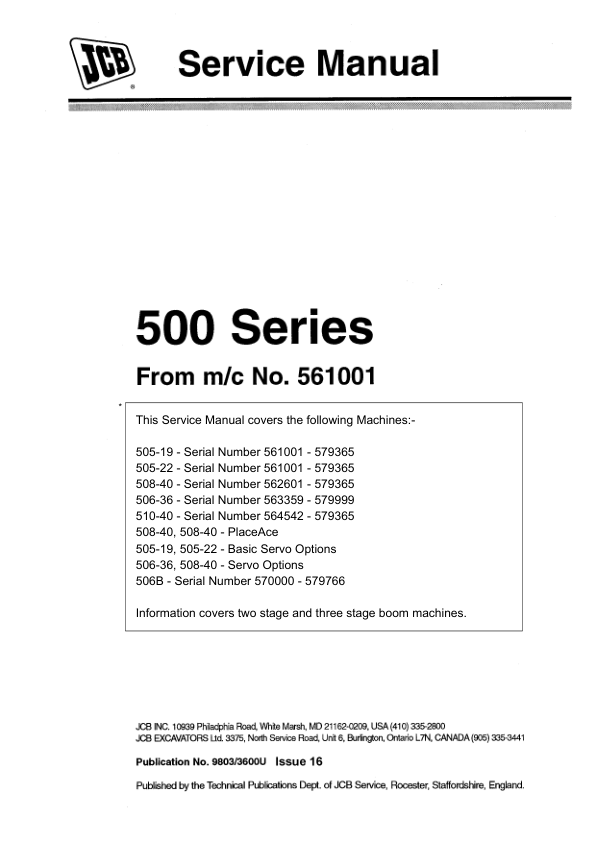

This complete service and repair manual covers the JCB 508-40 telehandler together with the 505-19, 505-22, 506-36, 506B and 510-40, publication number 9803/3600U. The PlaceAce chapter is the reason many owners buy this book: valve block operation, pulsar solenoid removal, and the boom angle, extension and attitude sensors, each with its own calibration and functional check. An eight-metre boom carrying four tonnes punishes the wear pads, the boom shims and the hose burst protection valves, so those procedures matter more here than on a shorter machine. Basic servo and full servo layouts are both covered. Recalibrate before you replace; sensors cost less than valve blocks.
Machine Model and Serial Numbers:
505-19 – Serial Number 561001 – 579365
505-22 – Serial Number 561001 – 579365
508-40 – Serial Number 562601 – 579365
506-36 – Serial Number 563359 – 579999
510-40 – Serial Number 564542 – 579365
508-40, 508-40 – PlaceAce
505-19, 505-22 – Basic Servo Options
506-36, 508-40 – Servo Options
506B – Serial Number 570000 – 579766
Contents:
General
Hydraulics
Body and Framework
PlaceAce Control System
Servo Control System
Engine
Transmission
Axles
Brakes
Hydraulic Steering
Electrics
Service Tools
Boom Float, Return to Dig Option
