Type: Telescopic Handler
Pages: 1227
Format: PDF
File Size: 119.8 MB
Part Number: 9803/3740-08
Language: English
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

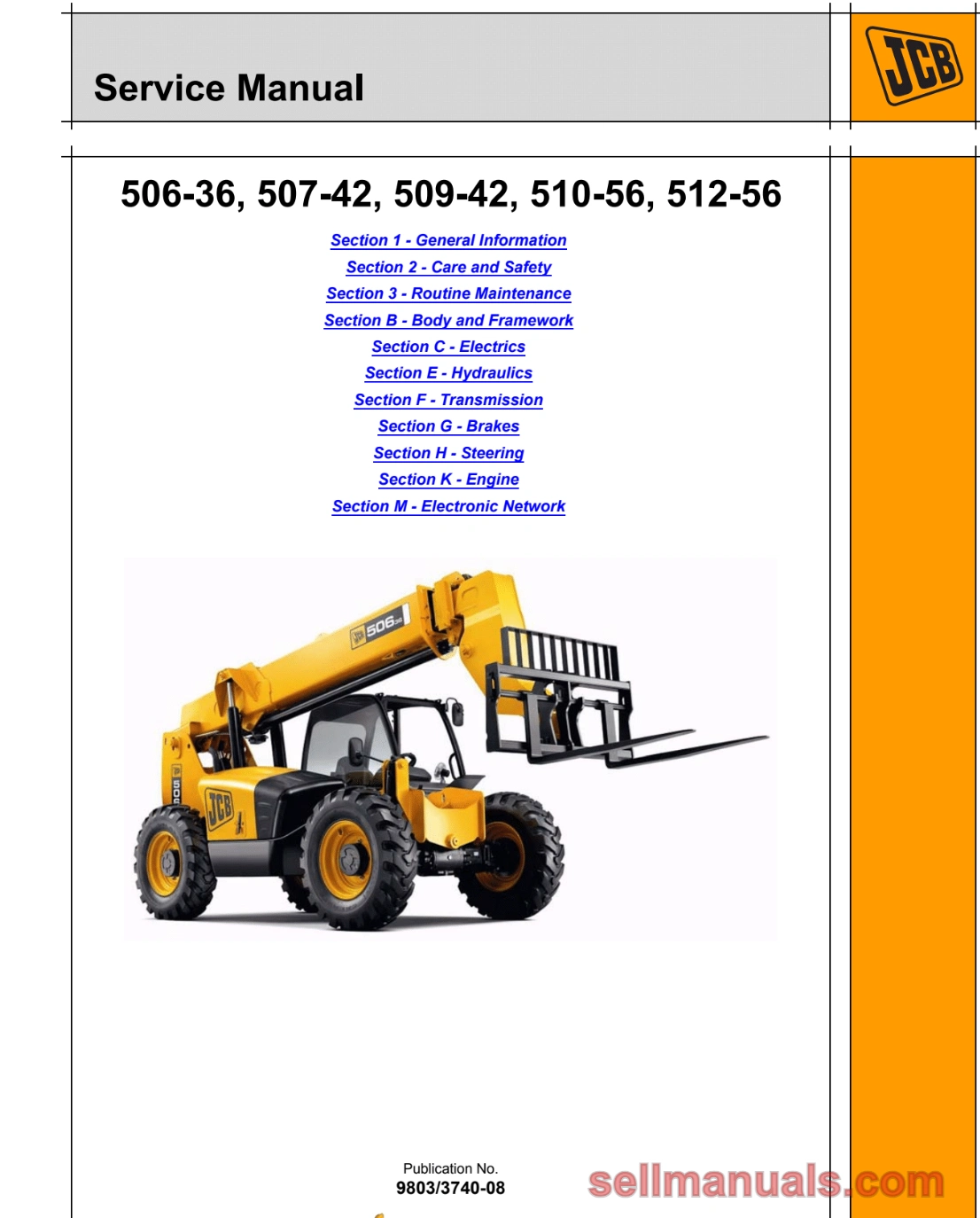

This complete service and repair manual covers the JCB 507-42 Loadall together with the 506-36, 509-42, 510-56 and 512-56 machines, publication number 9803/3740-08. The 507-42 is a rough terrain variable reach truck of roughly seven metres, and at that reach the chain tension, boom wear pads and hose burst protection valve decide how the machine feels under load. Servo joystick control and the electronic network section cover the fault codes and calibration routines a mechanical machine never needed, including load handling attachments and couplings. Transmission, brakes, steering and the hydraulic circuit are grouped the way JCB builds them, so a job that crosses systems is still easy to follow. Set the chains and pads to specification and the reach figure stays honest.
Contents:
Section 1 – General Information
Section 2 – Care and Safety
Section 3 – Routine Maintenance
Section B – Body and Framework
Section C – Electrics
Section E – Hydraulics
Section F – Transmission
Section G – Brakes
Section H – Steering
Section K – Engine
Section M – Electronic Network
