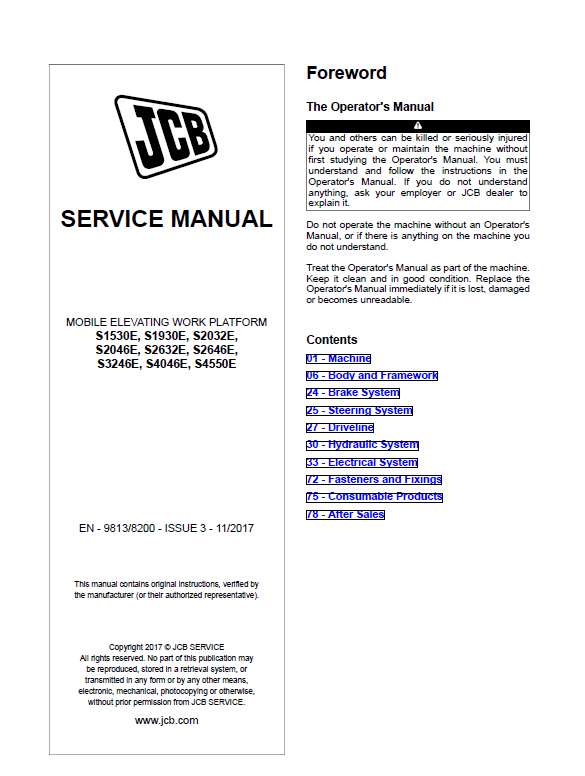

JCB S2632E Scissor Lift Service Manual PDF
Type: Scissor Lift
Pages: 566
Format: PDF
File Size: 92 MB
Part Number: 9813/8200
Language: English
Compatibility: PC, Mac, tablet, smartphone
This service manual covers the JCB S2632E mobile elevating work platform, one of nine machines in the S1530E to S4550E range, publication number 9813/8200. The electrical chapter carries the battery, the charger, the battery isolator, fuses and relays, plus the platform control faults that follow a dropped cell or a lazy charger. Hydraulic coverage runs through the lift cylinder, the pothole protection interlock and the lowering alarm and interrupt circuits, so the safety chain is documented instead of assumed. Body and framework, the steer and drive system and the fastener torque tables close the book. Load-test the battery before you open the hydraulic compartment.
Machine Model and Serial Numbers:
S1530E S/N: 2532501 and up
S1930E S/N: 2532501 and up
S2032E S/N: 2532501 and up
S2046E S/N: 2532501 and up
S2632E S/N: 2532501 and up
S2646E S/N: 2532501 and up
S3246E S/N: 2532501 and up
S4046E S/N: 2532501 and up
S4550E S/N: 2533185 and up
Contents:
Machine
Body and Framework
Operator Station
Engine
Fuel and Exhaust System
Cooling System
Electrical System
Fasteners and Fixings
Consumable Products
After Sales
