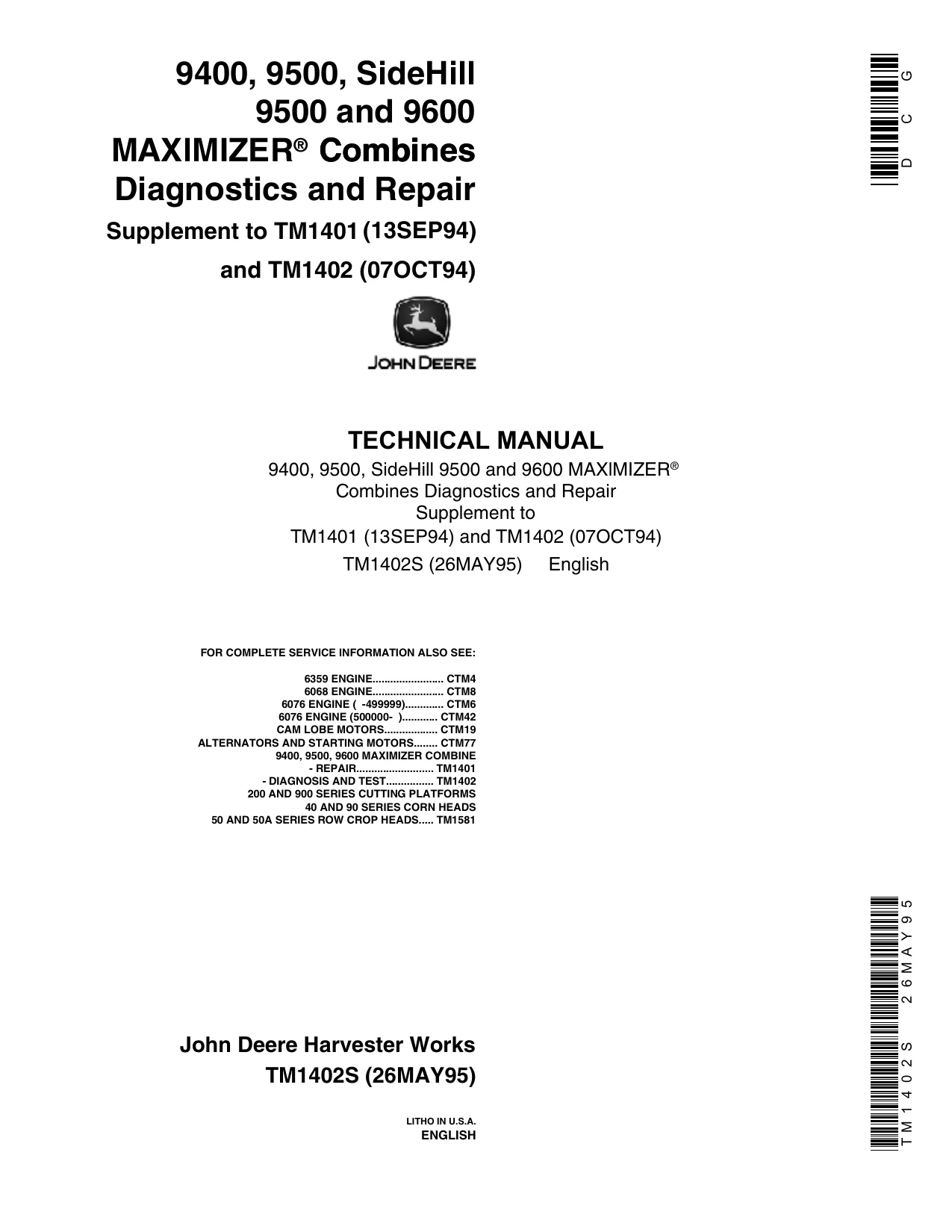

John Deere 9400, 9500, SideHill 9500 & 9600 MAXIMIZER Combines Diagnostics Technical Manual

Description

John Deere 9400, 9500, SideHill 9500 & 9600 MAXIMIZER Combines Diagnostics Technical Manual PDF
Pages: 292
Format: PDF
File Size: 14 MB
Part Number: TM1402S
Language: English
Delivery: Instant download after purchase
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

This complete service and repair manual covers the John Deere 9400, 9500, SideHill 9500 and 9600 MAXIMIZER combines under publication TM1402S, issued in 1995, with the diagnostics and repair procedures that professional technicians use to trace faults through the wiring and hydraulic schematics.

Contents:

GENERAL
POWER TRAIN REPAIR
HYDRAULIC REPAIR
OPERATOR STATION REPAIR
CONTOUR MASTER FEEDER HOUSE REPAIR
SEPARATOR
GRAIN TANK AND UNLOADING SYSTEM REPAIR
ELECTRICAL DIAGNOSTICS — ENGINE CONTROL UNIT
ELECTRICAL DIAGNOSTICS — BOSCH ENGINE CONTROL
ELECTRICAL DIAGNOSTICS — CONCAVE POSITION ADJUST
DIAL-A-MATIC DIAGNOSTICS
CONTOUR MASTER TILT CONTROL DIAGNOSTICS
COMBINE DATA CENTER DIAGNOSTICS
INDEX
