Type: Tractor
Pages: 346
Format: PDF
File Size: 146 MB
Part Number: 4283017
Language: English
Compatibility: PC, Mac, tablet, smartphone
When a tractor’s three-point linkage will not lift correctly, the PTO needs attention, or a transmission problem develops, the repair procedure depends on the assembly fitted to the machine. The Massey Ferguson 431 and 461 workshop manual brings together service information for the mechanical, hydraulic, and electrical systems covered by these tractors.
This manual is particularly useful when the repair involves more than routine maintenance. Its contents include separate sections for gearbox types, front axle configurations, steering systems, lift hydraulics, and electrical troubleshooting.

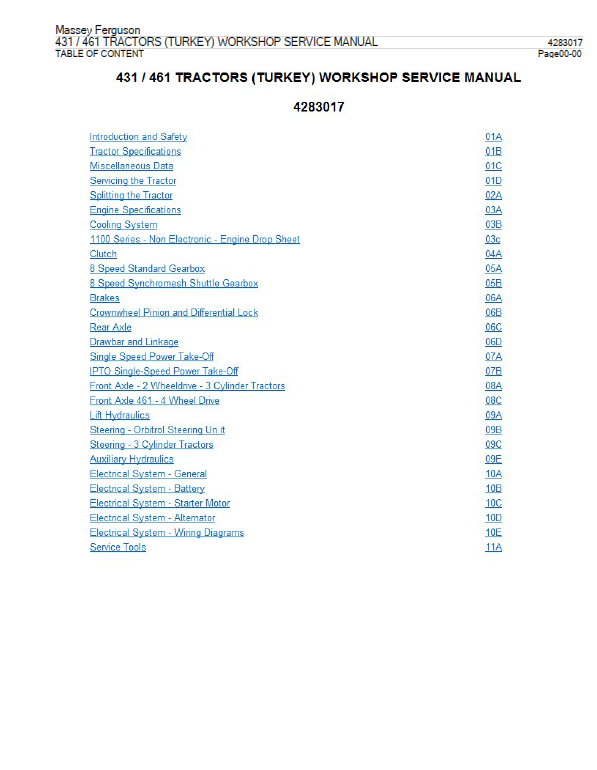

Contents:
01A. Introduction and Safety
01B. Tractor Specifications
01C. Miscellaneous Data
01D. Servicing the Tractor
02A. Splitting the Tractor
03A. Engine Specifications
03B. Cooling System
03c. 1100 Series 3/4 -Cylinder (Non Electronic) Diesel Engine
04A. Clutch
05A. 8 Speed Standard Gearbox
05B. 8 Speed Synchromesh Shuttle Gearbox
06A. Brakes
06B. Crownwheel Pinion and Differential Lock
06C. Rear Axle
06D. Drawbar and Linkage
07A. Single Speed Power Take-Off
07B. IPTO Single-Speed Power Take-Off
08A. Front Axle – 2 Wheeldrive – 3 Cylinder Tractors
08C. Front Axle 461 – 4 Wheel Drive
09A. Lift Hydraulics
plus 11 further sections
