Terex Shaef SKL SKS HML HR Service Manual

Description

Terex Shaef SKL SKS HML HR Service Manual PDF
Pages:2053
Format: PDF
Size: 482 MB
Language: English
Requirements: Adobe PDF Reader & WinZip
Compatibility: All Versions of Windows & Mac/IPAD

In this Service Manual the individual components of the Terex construction machinery range as well as the functions and adjustments of the aggregates installed are described.

Models Cover:

Terex SKL863, SKL873, SKL824, SKL834, SKL844, SKL854, SKL160, SKL260, SKS634
HML22, HML23 ,HML31, HML32 ,HML41, HML42
HR20, HR32, HR42, HR11, HR12, HR13, HR14, HR16, HR18, HR1.5 HR1.6, HR2.0, HR3.7

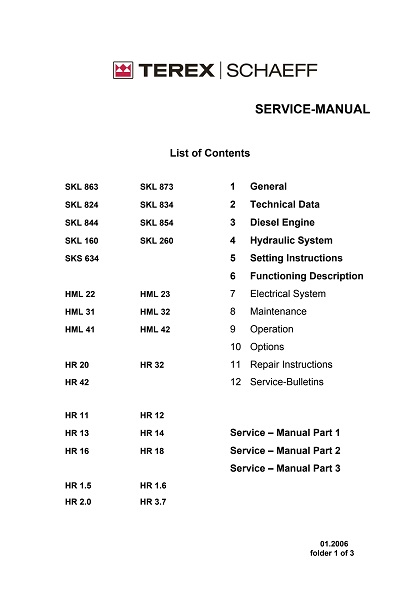

CONTENTS:

1 General
2 Technical Data
3 Diesel Engine
4 Hydraulic System
5 Setting Instructions
Functioning Description
7 Electrical System
8 Maintenance
9 Operation
10 Options
11 Repair Instructions
12 Service-Bulletins
