Contents:
Section 1 – Description
Section 2 – Operation
Section 3 – Planned Maintenance
Section 4 – Troubleshooting
Section 5 – Steering Arm, Control Head and Compartment
Section 6 – Brake Servicing
Section 7 – Transmission, Drive Wheel, Load Wheel
Section 8 – Elevation System Servicing
Section 9 – Hydraulic System Servicing
Section 10 – Electrical Components
Section 11 – Optional Equipment

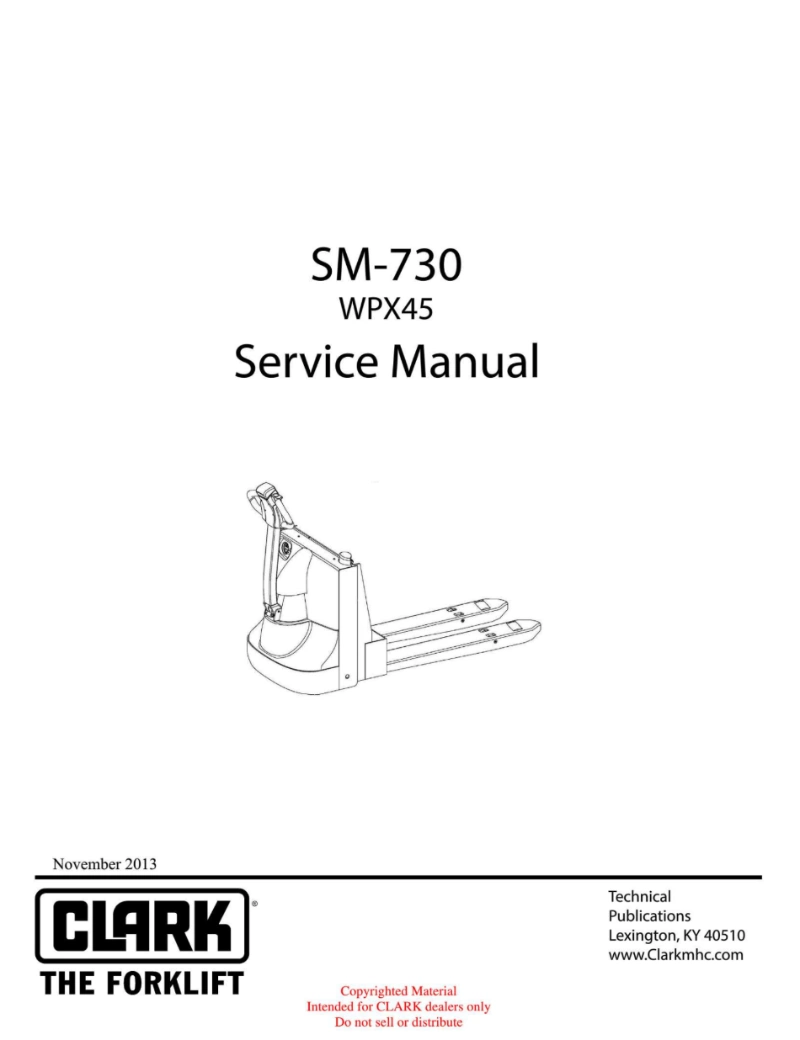

This complete service and repair manual covers the Clark WPX45, the 24-volt electric pallet truck rated for 4500-pound payloads, issued as service manual SM-730. Eleven sections take you from planned maintenance and battery care through troubleshooting, steering arm and control head service, brake work, drive and load wheel replacement, elevation and hydraulic servicing, and every electrical component on the truck. When it stops lifting or the steering arm goes stiff, the troubleshooting section is where the answer usually sits. A cheap fix for a truck that never sits still.
