Type: Mini Excavator
Pages: 1420
Format: PDF
File Size: 312 MB
Part Number: 9813/2700
Language: English
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

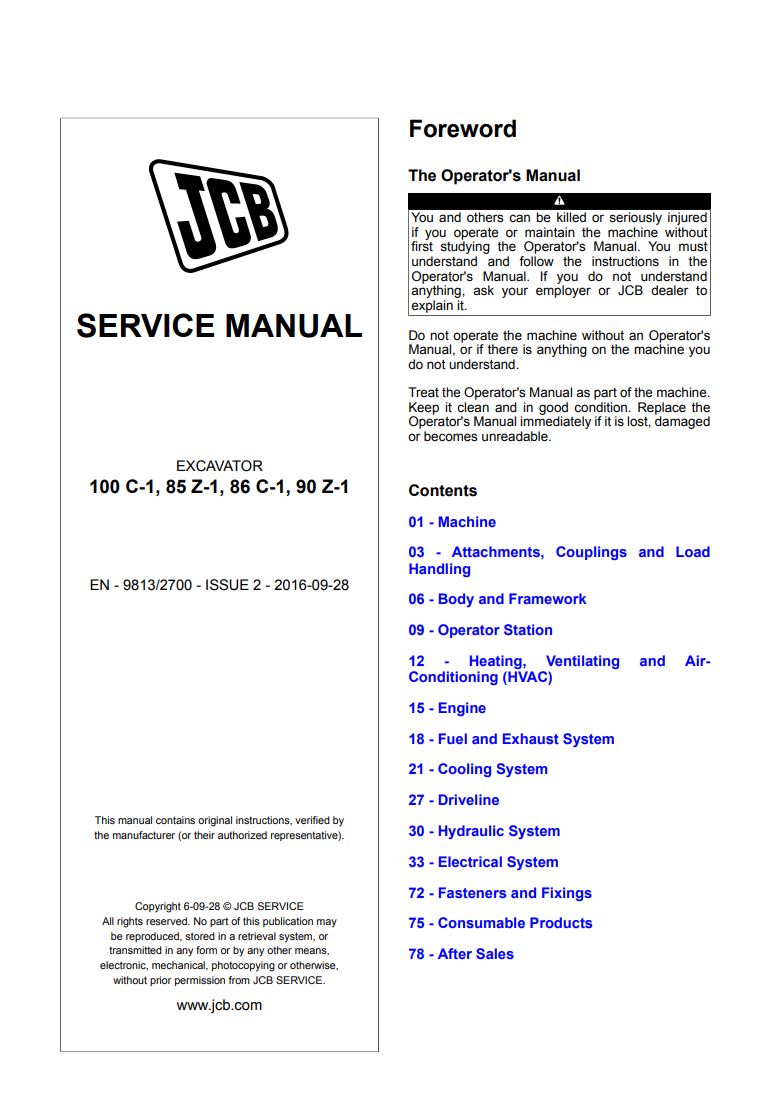

JCB 100 C-1, 85 Z-1, 86 C-1 and 90 Z-1 mini excavators share one service manual, publication 9813/2700, Issue 2 dated September 2016, supplied as a PDF for convenient digital access. It provides step-by-step instructions and detailed illustrations to help users understand servicing procedures, diagnose faults and carry out repairs efficiently, with the fault-code tables, torque settings and hydraulic circuit descriptions that all four machines work from.
Two of these are zero-tail-swing machines and two are conventional, and the difference reaches past the counterweight: swing gearbox, slew motor and track gearbox each carry their own removal and dismantling sequence in the coded sections. Having the measured value on the same page as the teardown is what keeps a swing motor from coming apart twice.
Contents:
01 – Machine
03 – Attachments, Couplings and Load Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
