Type: Telescopic Handler
Pages: 1663
Format: PDF
File Size: 85 MB
Part Number: 9803/3750-05
Language: English
Compatibility: PC, Mac, tablet, smartphone
This is a digital product. No physical book or CD will be shipped.

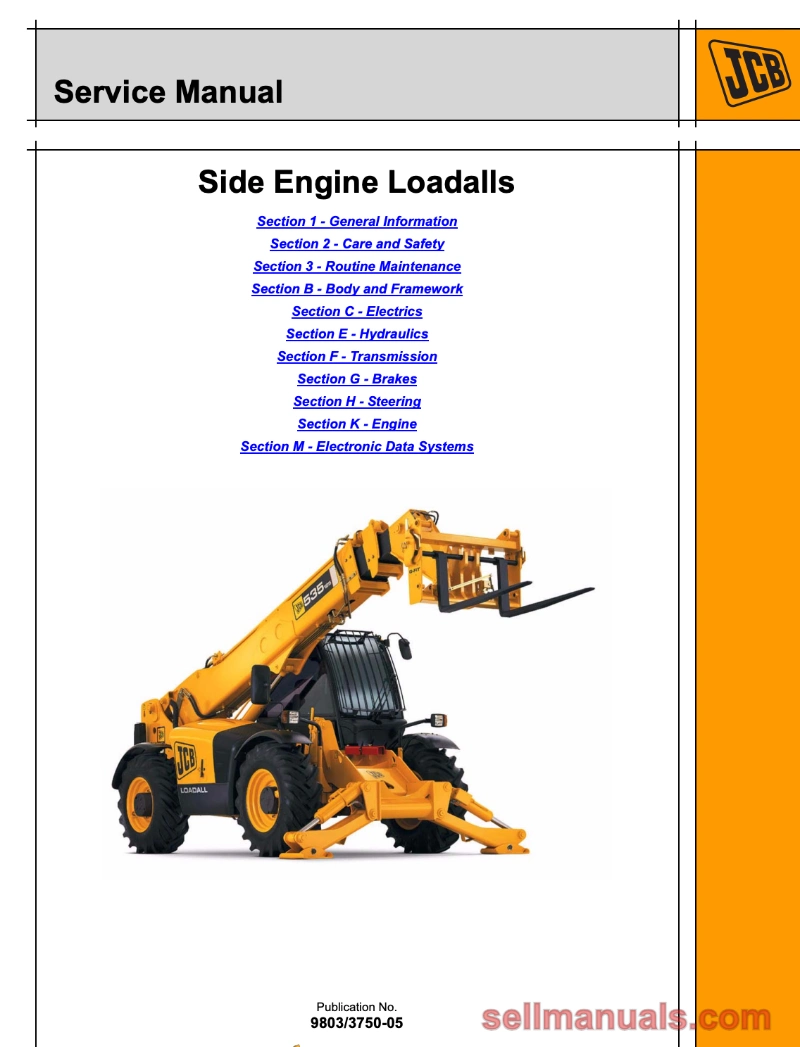

This complete service manual covers the JCB 550-170 side engine Loadall, publication number 9803/3750-05, and it also covers the 540-140, 540-170, 550-140 and the 535-125 and 535-140 Hi Viz machines. With the engine mounted at the side, the fuel and exhaust work is reached differently from a conventional Loadall, so the safe shutdown, boom strut and hydraulic venting procedures come first, exactly as the book sets them out. Stall speed combinations are tabulated for the SD, SE and SF engine variants, which is how a torque converter or transmission fault gets caught before it becomes a rebuild. Electronic data systems, the load moment function and the lift, extension and tilt rams each carry their own pressures and calibration checks. Run the stall test first; ten minutes rules out half the list.
Contents:
Section 1 – General Information
Section 2 – Care and Safety
Section 3 – Routine Maintenance
Section B – Body and Framework
Section C – Electrics
Section E – Hydraulics
Section F – Transmission
Section G – Brakes
Section H – Steering
Section K – Engine
Section M – Electronic Data Systems
