Type:Boom Lifts
Pages: 835
Format: PDF
File Size: 69.4 MB
Part Number: 57.4400.6400
Language: English
Compatibility: PC, Mac, tablet, smartphone

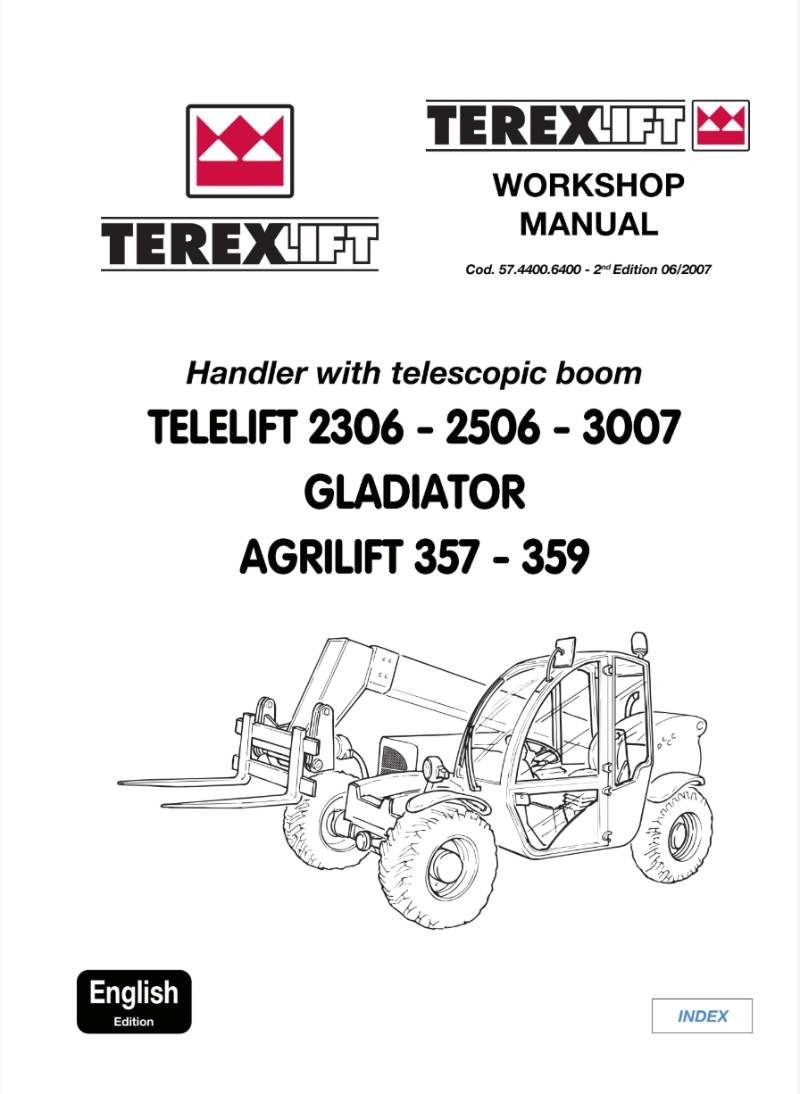

This manual has been prepared to provide information about the routine and extraordinary maintenance of the main units of the machine in a safe and proper way.
Contents:
General Information
Safety Regulations
Technical Operation Data
Checks and Adjustments
Disassemblies and Assemblies
Troubleshooting
Carraro Axle Assembly / Dismantling (Valid for Telelift 2306 – Gladiator)
Dana Axle Assembly / Dismantling (Valid for Telelift 2506 – 3007)
Perking Engine Maintenance (Valid for Telelift 2306 – Gladiator)
Deutz Engine Maintenance (Valid for Telelift 2506 – 3007)
Repair Instructions – Rexroth Pump (Valid for Telelift 2306 -2506 – 3007 – Gladiator)
Repair Instructions – Rexroth Motor (Valid for Telelift 2306 – 2506 – 3007 – Gladiator)
Compact Plus Transmission (Valid for Agrulift 357 – 359)
